A. Demilitarized zone, used to secure an internal network from external access. You can use Linux firewall to create DMZ easily. There are many different ways to design a network with a DMZ. The basic method is to use a single Linux firewall with 3 Ethernet cards. The following simple example discusses DMZ setup and forwarding public traffic to internal servers.
Sample Example DMZ Setup
Consider the following DMZ host with 3 NIC:
[a] eth0 with 192.168.1.1 private IP address - Internal LAN ~ Desktop system
[b] eth1 with 202.54.1.1 public IP address - WAN connected to ISP router
[c] eth2 with 192.168.2.1 private IP address - DMZ connected to Mail / Web / DNS and other private servers

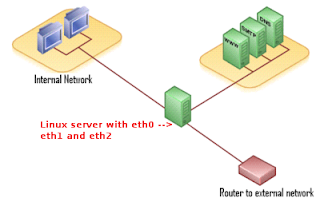

(Fig 01: A typical Linux based DMZ setup [ Image modified from Wikipedia article] )
Routing traffic between public and DMZ server
To set a rule for routing all incoming SMTP requests to a dedicated Mail server at IP address 192.168.2.2 and port 25, network address translation (NAT) calls a PREROUTING table to forward the packets to the proper destination.
This can be done with appropriate IPTABLES firewall rule to route traffic between LAN to DMZ and public interface to DMZ. For example, all incoming mail traffic from internet (202.54.1.1) can be send to DMZ mail server (192.168.2.2) with the following iptables prerouting rule (assuming default DROP all firewall policy):
| # ### end init firewall .. Start DMZ stuff #### # forward traffic between DMZ and LAN iptables -A FORWARD -i eth0 -o eth2 -m state --state NEW,ESTABLISHED,RELATED -j ACCEPT iptables -A FORWARD -i eth2 -o eth0 -m state --state ESTABLISHED,RELATED -j ACCEPT # forward traffic between DMZ and WAN servers SMTP, Mail etc iptables -A FORWARD -i eth2 -o eth1 -m state --state ESTABLISHED,RELATED -j ACCEPT iptables -A FORWARD -i eth1 -o eth2 -m state --state NEW,ESTABLISHED,RELATED -j ACCEPT # Route incoming SMTP (port 25 ) traffic to DMZ server 192.168.2.2 iptables -t nat -A PREROUTING -p tcp -i eth1 -d 202.54.1.1 --dport 25 -j DNAT --to-destination 192.168.2.2 # Route incoming HTTP (port 80 ) traffic to DMZ server load balancer IP 192.168.2.3 iptables -t nat -A PREROUTING -p tcp -i eth1 -d 202.54.1.1 --dport 80 -j DNAT --to-destination 192.168.2.3 # Route incoming HTTPS (port 443 ) traffic to DMZ server reverse load balancer IP 192.168.2.4 iptables -t nat -A PREROUTING -p tcp -i eth1 -d 202.54.1.1 --dport 443 -j DNAT --to-destination 192.168.2.4 ### End DMZ .. Add other rules ### |
Where,
■-i eth1 : Wan network interface
■-d 202.54.1.1 : Wan public IP address
■--dport 25 : SMTP Traffic
■-j DNAT : DNAT target used set the destination address of the packet with --to-destination
■--to-destination 192.168.2.2: Mail server ip address (private IP)
